Payment & Shipping Terms:
|Brand:||Sunlight||Function:||Tattoo Removal Carbon Peeling Skin Rejuvenation|
|Color:||White Plus Gray||With Red Indicator:||Yes|
|Style:||Portable||Three Tips:||1064nm 532nm 1320nm|
laser tattoo removal equipment,
laser tattoo removal device
High quality Q Switched Nd Yag Laser Tattoo Removal Machine for carbon peelling and skin lightening
Model : Q - laser
Q swithced nd yag laser working Principle :
The energy of Q-switched ND YAG laser can be absorbed by the blue and black melanin .The
melanin will be fragmented so small that they can be metabolized by the lymphatic system or
egested out of the body . Thus the tattoo or other pigmentations will be removed without damage to normal tissue.The treatment is safe and convenient without downtime and side effects .

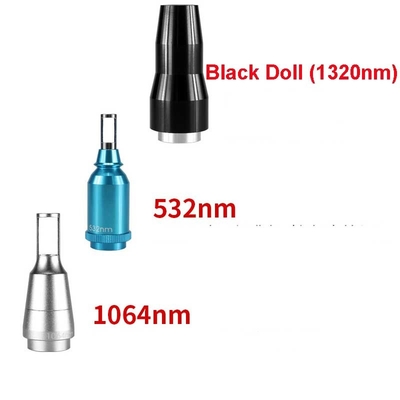

Functions(three filters) :
1 . 532nm for colorful tattoo removal.
2 . 1064nm for black tattoo removal/pigment removal.
3 . 1320nm for skin carbon peeling,skin whitening.
1 . Long working with red light indicator which can ensure do treatment exactly on treatment area
2 . Very short pulse width 5-7ns , compare it with the common tattoo removal laser 10ns , its output energy is more powerful , more short pulse width , more better treatment result Fast to removal pigments and tattoos
3 . Painless
4 . High laser energy with best treatment result
5 . Long life (more than 500,000 shots)
6 . With 1320nm tips for carbon peeling
one pieces handl with three tips
Technical parameter details
|1) Wavelength||1064nm&532nm, 1320nm|
|2) Spot Diameter||1~5mm|
|3) Width of Pulse||5-7ns|
|4) Pulse Energy||200－1500mj|
|5) Repetition Rate||1-8Hz adjustable|
|6) Operation Interface||8.4" color touch screen|
|7) Cooling Systems||Air Cooling & Close Water Circulation|
|8) Electrical Requirements||100/110V,50~60HZ or 230~260V, 50~60HZ|
|9) Dimension||41×24×30 cm|
|10) Net Weight||14 kg|
|11) Package size||54×35×45 cm|
|12) Gross weight||24 KG|
Accessory Parts list
. Main host
. The laser handpiece
. 3 tips
. Protective glasses
. Protective goggles
. Power cable
. Foot switch
. Plastics hose
Warranty & After-sale Service & Training
A . 2 years ex factory under normal and Correct operation ; free labor and material but without consumables parts.(since our great confidence of our machine’ s excellent quality
B . In order to give clients more satisfied products experience, the stuff with rich experience of laser beauty and medical knowledge, and they work in this area for 2-5 years. And for our after-sales department , they work for 7 days for a week and 18-24 hours a day to ensure the 24 hours on line service .
C . There is a copy user’s manuals and clinical treatment guider for detailed instructions on the introduction, the operation , the maintenance , etc .
D . There is a comprehensive training last for 5-7 days through email , vedio ,on line service , including how to operate , maintenance and adjust the treatment parameters for different treatments , etc .
